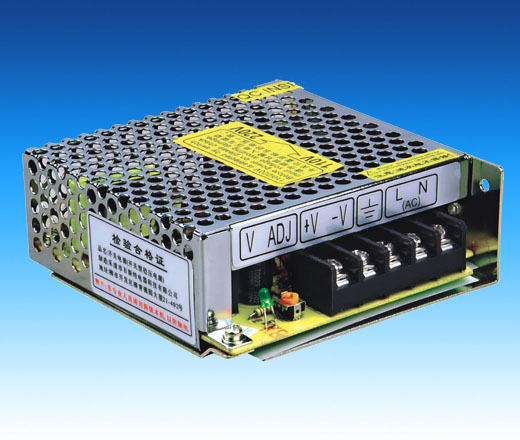

Model

NS-15-5

NS-15-12

NS-15-24

Output

DC Voltage

5V

12V

24V

Voltage Tolerance

+2%

+1%

+1%

Rated Current

3A

1.3A

0.7A

Current Range

0－3A

0－1.3A

0－0.7A

Rated Power

15W

15.6W

16.8W

Ripple & Noise

50 mVp-p

50 mVp-p

100 mVp-p

DC Voltage Adi. Range

-5%,+10%

+10%

+10%

Setup,Rise,Hold Time

200ms,100ms,30ms at full load

Input

Voltage Range

85～132 VAC / 170～264 VAC 47～63 Hz; selected by switch 240～370VDC

AC Current

0.5 A/115 V 0.25A/ 230 V

Efficiency

65%

68%

72%

Inrush Current

Cold start 15A/115VAC 30A/230VAC

Leakage Current

＜0.5 mA/240VAC

Protection

Over Load

110%～160%

Protection type: Fold back current limiting, recovers automatically after fault condition is removed

Environment

Working Temp, Humidity

-10℃～+60℃;20%～90 %RH

Storage Temp, Humidity

-20℃～+85℃;10%～95 %RH

Vibration

10～500Hz,2G 10min./1cycl, period for 60 min, each along X, Y, Z, axes

Safety

Withstand Voltage

I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG :100MΩ/500VDC

Standards

Safety Standard

Design refer to UL1012

EMC Standard

Design refer to FCC Part 15J Conduction Class B

Others

Weight

0.31Kg

Packing

45pcs/15Kg/0.9CUFT
